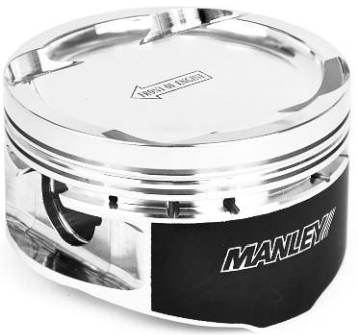

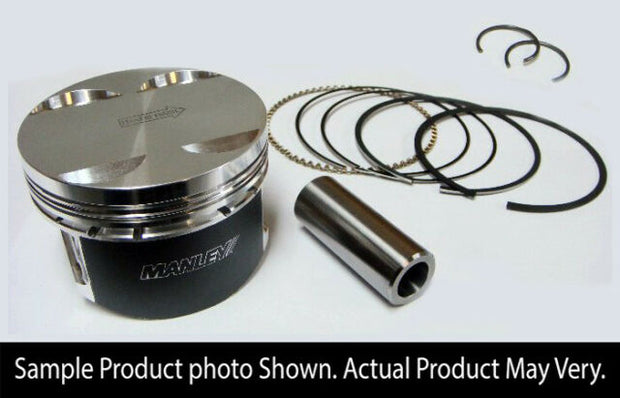

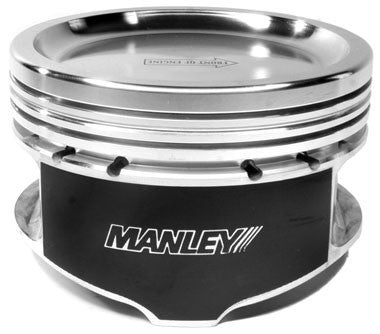

Manley Piston 86MM B Type FA20

Regular price $284.95 Save $-284.95
/
Tax included. Shipping calculated at checkout.

Special Order | Contact Us
Manley Piston 86MM B Type FA20
Manley Piston 86MM B Type FA20
Manley Piston 86MM B Type FA20
Manley Piston 86MM B Type FA20
Manley Piston 86MM B Type FA20
Manley Piston 86MM B Type FA20
Manley Piston 86MM B Type FA20
  • Rod Length - 5.090"
  • Stroke - 86mm
  • Comp Distance - 1.292"
  • Dome Volume - -13cc
  • Bore Size - 86.0mm to 86.50mm
  • 2618 High Strength Material; Lightweight Design
  • .150" x 2.250" Wall Premium Chrome Moly pin (Standard Series) included
  • 9310 alloy .210" Wall Pin (Extreme Duty Series) Included
  • Pressure balance groove
  • Will accommodate +1mm valve sizes
  • Premium Steel top rings with Napier seconds and round wire locks included

Please Note

The standard 86.00mm bore size pistons feature skirt diameters that correspond to the OEM Grade A or B bores, resulting in a piston to wall clearance range of .0023" - .0031".

Check the bore grades on the top of your block and order the appropriate quantities of Grade A or B pistons.
Sold as 1 Piston- Not a Set
