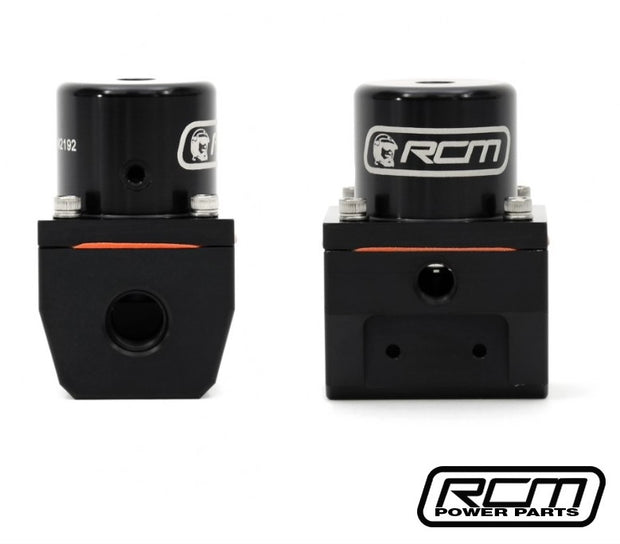

RCM Fuel Pressure Regulator

Regular price $354.95 Save $-354.95
/
Tax included. Shipping calculated at checkout.

Only 0 items in stock!
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM Fuel Pressure Regulator
RCM'S Fuel Pressure Regulators allow maximum fuel control with absolute minimum flow restriction for engines up to and exceeding 1500 HP. Developed with Advanced Bypass Technology and an Enlarged Port Design to provide accurate fuel pressure control across the range, enabling your fuel pump to push more, draw less current, and always meet fuel volume demands with no pressure creep. All RCM Performance Fuel Pressure Regulators are laboratory tested and are perfectly compatible with gasoline and methanol. In addition each has a diaphragm made of flurosilicone for extended life and high temperature protection.

Features a vacuum/boost compensating port for a supercharger, turbo, or intake manifold vacuum connection.

Holds fuel system pressure for at least 20 minutes after pump shutdown.
1/8 inch NPT gage port.
Machined from 6061-T651 Aircraft Grade Aluminium Alloy
Coated with Military Specification MIL-A-8625 Anodize colour.
Relief Pressure Adjustment Range: 35-90 psi (atmospheric reference)
Maximum Relief Flow Capacity: 3.0 GPM
Inlet/Outlet Port Size 2x AN-6 (O-Ring Seal)
Return Port Size AN-6 (O-Ring Seal)



Fitting Guide
