Impreza WRX 08-14

Direct Fit High-Output 300L/H Replacement Ethanol Friendly Fuel Pump

A true ethanol and petroleum friendly replacement fuel pump with flow/pressure capabilities to deliver fuel for up to 280kw at the wheels.

We recommend a Boxer Performance Parts In-Tank Fitting Kit for MY94-MY07 Impreza, WRX, STI, Forester + MY94-MY03 Liberty, Outback.

Note: Our High-Output Fuel Pumps do not have a check valve, therefore slightly longer ‘cranking’ periods are experience before the engine ‘fires-up’, this is a positive side-effect for engine longevity.

Raceworks One Way Check Valve

SUPPORTS 600+ HORSEPOWER AT 40 PSI 13.5V

GSS 39MM Fuel Pump Family Design Update: Generation 3 (G3)

Walbro / TI Automotive has made pump outlet updates to our popular line of 255LPH 39MM Gerotor fuel pumps. The new outlet design is engineered to improve fitting robustness while maintaining the current electrical connection configuration. The update retains our proven pump technology and these third generation pumps will continue to be manufactured in the Caro, MI plant. With the updated outlet design, we will be superseding the current GSS340, GSS341, and GSS342 pumps.

Walbro / TI Automotive GSS350G3, GSS351G3, GSS352G3 Fuel Pumps 600+ horsepower!

Walbro / TI Automotive's new GSS fuel pumps are lapping the field with increased flow rates of 350 lph. Our proven, robust gerotor technology is inside every 39mm straightwall GSS 350, perfect for forced induction (turbocharged and supercharged) applications. We've launched three 350 lph pump versions giving you multiple options to fuel your adrenaline because fast matters!

Features:

• 350 LPH / 90 GPH RATED AT 40PSI 13.5V
• Features an upgraded outlet design with improved one piece construction
• Fuel: Gas
• OE quality
• 39mm diameter
• Easily mountable to new or existing in-tank hangers
• Positive displacement for robust performance
• Manufactured in TI Automotive's Caro, Michigan plant - Made In USA.

What's Included:

• 1 x GSS352 Fuel Pump Only
• 1 x Installation Fitting Kit

We offer new Flow Through Flex Fuel Sensor as a part of ECA-2 Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connectorwith Plug and Play harness suit Subaru WRX 08-14/STI 08-17

What's your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle.  For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?
E85 has the equivalent octane rating of 105 or higher octane fuel.  Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself.

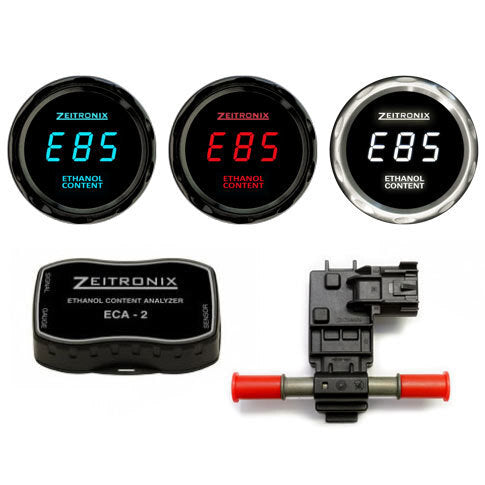

The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel.

• Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with ECUs, data logging and engine management systems.
• Connecting harness to Zeitronix Flow Through FLEX Fuel Sensor is included. Harness length is 8 ft (2.4m)
• Optional real time E% Ethanol Content Gauge.
  The E%  gauge is only 3/4" (19mm) thick. The back of the gauge is completely flat with cable hidden in a cavity and can besurface mounted almost anywhere inside the car cabin using a piece of Velcro or double sided tape. The E% Gauge base allows the gauge to be mounted in a standard 2” 1/16 (52mm) gauge pod. For additional mounting options the package includes 2 set screws and 2 nuts (4-40 screw size). Check out the gallery for gauge installation pictures.
  The E% Gauge plugs into the ECA-2 GAUGE port. Power and serial data is supplied directly through the single connection - there are no additional +12V or ground wires. The E% Gauge cable length is 5 ft (1.5m).
  ECA-2 is required for E% Gauge operation.
• A flex fuel sensor is required.  The ECA-2 is compatible with some OEM sensors used in GM vehicles with the flex fuel insignia or which run on E85. However GM offers a large number of different sensors with different specs.
  ECA-2 Kit which includes Zeitronix tested Flex Fuel Sensor
• ECA-2 dimensions: 3" x 2" x 1" (76mm x 50mm x 25mm)
• Made in the USA!

ECA KIT
We offer new Flow Through Flex Fuel Sensor as a part of ECA-2 Kit, which includes the Ethanol Content Analyzer, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector.ECA Kitcan be purchased

What's your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle.  For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?
E85 has the equivalent octane rating of 105 octane gasoline.  Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself.  The Zeitronix Ethanol Content Analyzer helps you get the most out of your engine and fuel.

What are the sizes of the flex fuel sensor inflow and outflow lines?
Zeitronix Flow Through Flex Fuel Sensor both tubes are 0.37" and 0.5" at the flange.

The usual mounting location for the sensor is the return fuel line.  Make sure the sensor is filled completely with fuel.
A professional installation by a shop familiar with your vehicle and it's fuel system is required. Always check for fuel leaks!

We offer new Flow Through Flex Fuel Sensor as a part of ECA-2 Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector with Plug and Play Harness Incl for Subaru Subaru WRX & STI

What's your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle.  For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Gauge Not Included

Extreme High-Output Ethanol Friendly Fuel Pump

A true ethanol and petroleum friendly fuel pump with flow/pressure capabilities to deliver fuel for up to 350kw at the wheels.

Note: Modifications to the factory fuel pump carrier bracket or module are required.

Our Extreme High-Output Fuel Pumps do not have a check valve, therefore slightly longer ‘cranking’ periods are experience before the engine ‘fires-up’, this is a positive side-effect for engine longevity.

You can also choose to add a one way check valve if you prefer:

Raceworks One Way Check Valve

Note: In place of the BR540 on its own we recommend a Boxer Performance Parts 700HP Subaru Fuel Pump Module for MY08-MY14 WRX, MY08-MY20 STI, MY08-MY13 XT Forester, MY04-MY10 GT Liberty.

Extreme High-Output Ethanol Friendly Fuel Pump Module Assembly

A complete ‘drop-in’ replacement fuel pump module, featuring the Bosch Motorsport BR540 true ethanol and petroleum friendly fuel pump with flow/pressure capabilities to deliver fuel for up to 350kw at the wheels.

 For over 300KW at the wheels, a MagnaFuel Fuel Pressure Regulator is required to be fitted to your engine in place of the OEM fuel pressure regulator.

Note:

Our Extreme Hi-Output Fuel Pumps do not have a check valve, therefore slightly longer ‘cranking’ periods are experience before the engine ‘fires-up’, this is a positive side-effect for engine longevity.
