Impreza WRX & STI 94-00

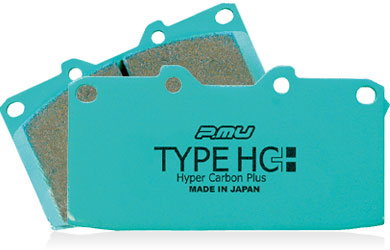

Project Mu Hyper Carbon +

Project MU HC is a premium Performance Street and Rally brake pad. HC has more bite than both NS and B-Spec and has excellent fade resistance. Capable of operating at temperatures up to 800°c, this pad will handle almost all serious braking conditions.
HC is a genuine ‘cross over’ pad suitable for both road and track Use. HC is extremely capable in competition environments so use this pad if you are involved in serious track day, rally and hill climb.

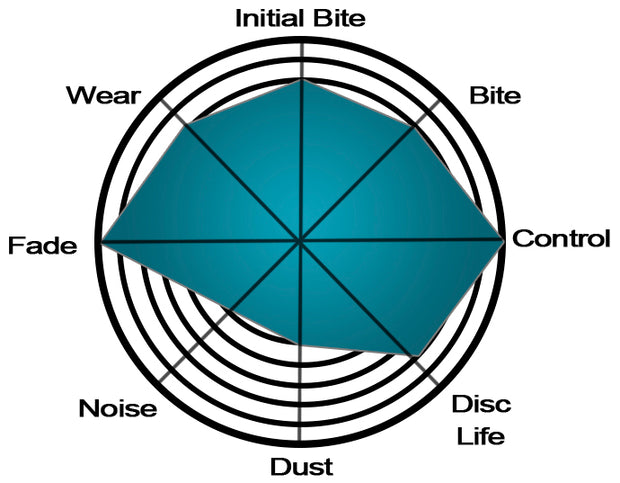

Along with temperature capabilities, HC is renowned as a ‘drivers pad’ with unmatched driver feel and control.

Friction Co Efficient .38-.62

Temperature Range 0-800°

Compound Hyper Carbon

Suits:

• 99-2007 Subaru WRX GD (2-Piston)

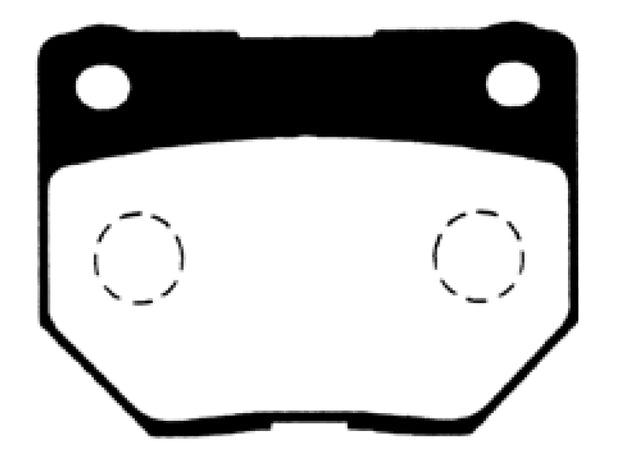

Please confirm pad shape by comparing existing pad against the blueprint in the second photo.

Project Mu Hyper Carbon +

Project MU HC is a premium Performance Street and Rally brake pad. HC has more bite than both NS and B-Spec and has excellent fade resistance. Capable of operating at temperatures up to 800°c, this pad will handle almost all serious braking conditions.
HC is a genuine ‘cross over’ pad suitable for both road and track Use. HC is extremely capable in competition environments so use this pad if you are involved in serious track day, rally and hill climb.
Along with temperature capabilities, HC is renowned as a ‘drivers pad’ with unmatched driver feel and control.

Friction Co Efficient .38-.62

Temperature Range 0-800°

Compound Hyper Carbon

Suits:

• 1999-2000 Subaru STI GC8 (4-Piston)
• 2001-2007 Subaru WRX GD (4-Piston)
• 2003-2007 Subaru Forester SG (4-Piston)**

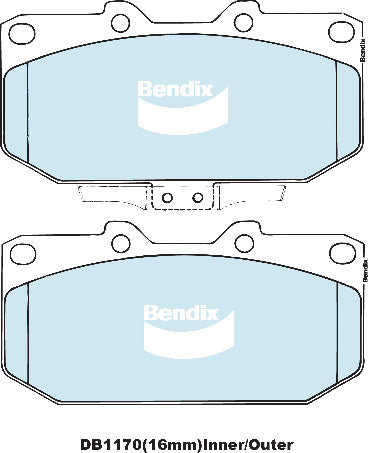

**SG Forester has two possible caliper options either 4-Piston DB1170 or 2-Piston DB1491. Check pad shapes to confirm correct pad for your model.

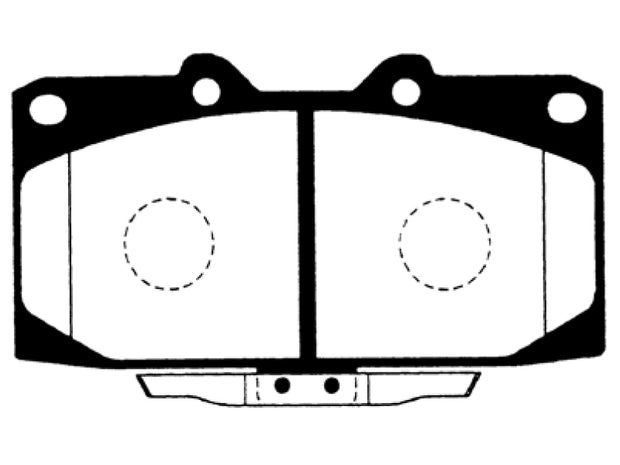

Please confirm pad shape by comparing existing pad against the blueprint in the second photo.

Genuine OEM Brembo

Suits:

• 99-2007 Subaru WRX GD (2-Piston)

Please confirm pad shape by comparing existing pad against the blueprint in the second photo.

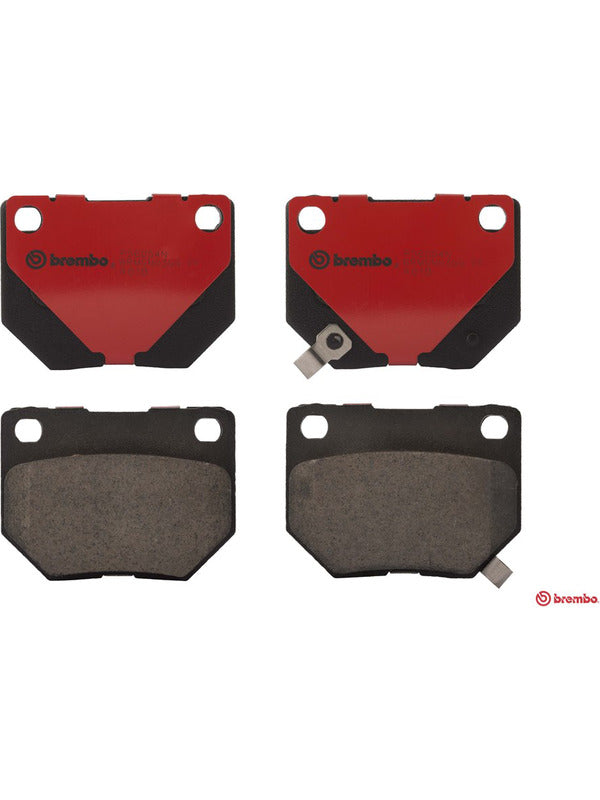

 Genuine OEM Brembo Brake Pads

Suits:

• 1999-2000 Subaru STI GC8 (4-Piston)
• 2001-2007 Subaru WRX GD (4-Piston)
• 2003-2007 Subaru Forester SG (4-Piston)**

**SG Forester has two possible caliper options either 4-Piston DB1170 or 2-Piston DB1491. Check pad shapes to confirm correct pad for your model.

Please confirm pad shape by comparing existing pad against the blueprint in the second photo.

High Performance OEM upgrade brake pads for Performance / Trackdays.

Winmax W1 brake pads are an organic based material suitable for performance street use. Low dust, Low noise properties make this pad popular for those looking to upgrade standard brake pads for something with some more oomph!

Compound: Non metal, organic
Friction: 0.29 – 0.32
Temp range: 0 – 450degC

This pad is ideal for:
Everyday street use ,hills runs, enthusiast track days with small cars.

Winmax W3 brake pads are a semi-steel based compound suitable for performance and light trackday use. Low steel properties means this pad is popular for those looking to upgrade to exceptional performance without compromising on too much comfort.

Compound: Semi-metallic
Friction: 0.34 – 0.37
Temp range: 0 – 600degC

This pad is ideal for:
High performance street use, track days, hill climbs, rally
serious enthusiast driving.

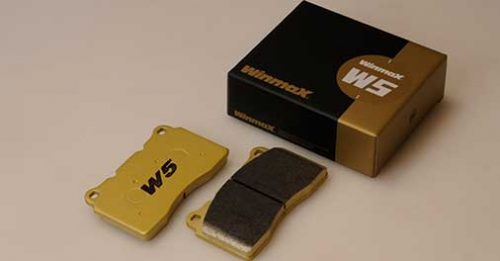

Winmax W5 brake pads made with high steel ingredients but perfectly balanced for club level circuit racing and rally, W5 is the choice for seasoned track enthusiasts. Recommended for road registered cars where the main focus is lap times and where protection against extreme brake fade is required.

Compound: Semi Metallic
Friction: 0.40 – 0.43
Temp range: 100 – 750degC

• Performance upgrade brake pads for trackday / sprint racing.
• Competition, Performance pads-not ideal on the street.

This pad is ideal for:
Circuit /rally/hill climb, tarmac rally for medium sized cars & track days for all vehicles

Suits:

• 99-07 WRX GD (2-Piston)

Please confirm pad shape by comparing existing pad against the blueprint in the photo.

DBA'S Street Series (SS) brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of street series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

DBA recommends street series brake pads for everyday use application in passenger cars, SUVs and Light
Commercial Vehicles.

DBA recommends use with street series plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

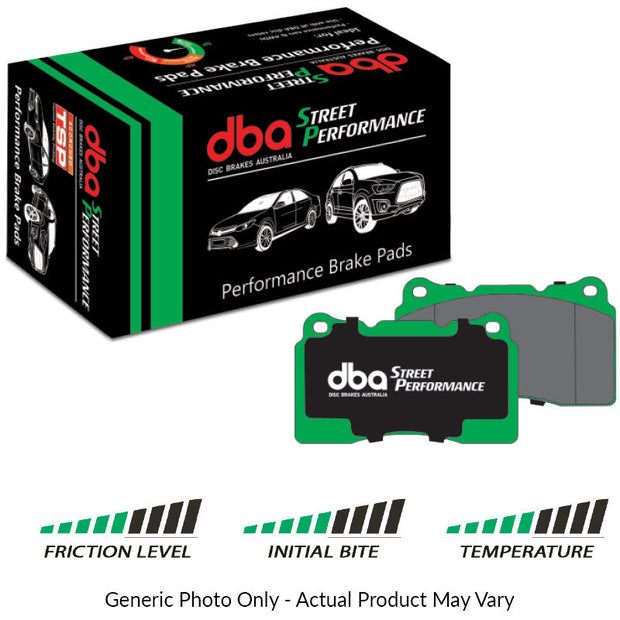

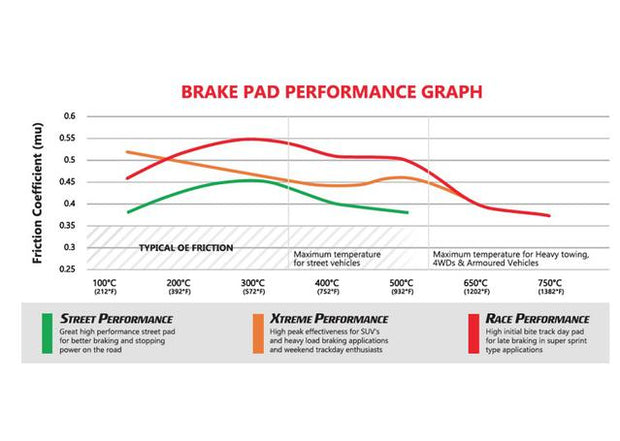

DBA’s Street Performance (SP) and Extreme Performance (XP) brake pads have been designed for drivers seeking improved braking performance over traditional O.E. brake pads. DBA Street Performance is the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation.

 DBA’s Street Performance (SP) brake pads have been designed for drivers seeking improved braking performance over traditional O.E. brake pads. DBA Street Performance is the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation.

The SP range is recommended for street performance vehicles

• Semi-metallic friction material
• F-F class friction (0.35 average mu from low to high temperatures)
• Consistent friction at high temperatures
• Optimal braking consistency up to 438ºC (820ºF)

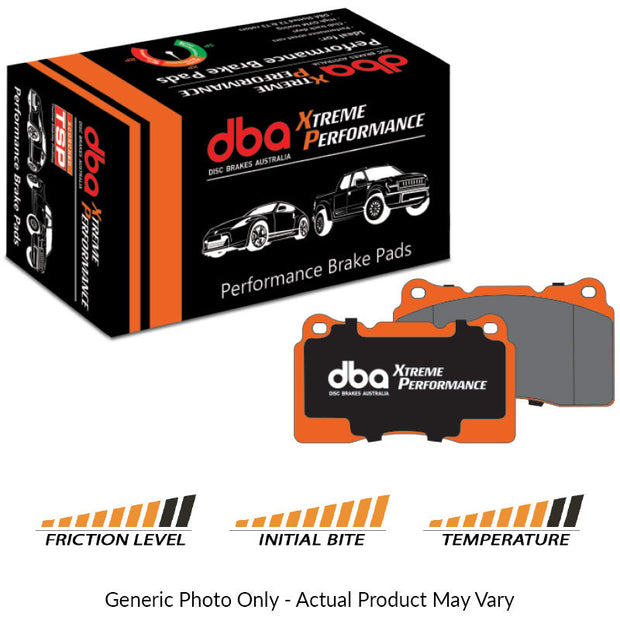

DBA’s Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550ºC (1022ºF)

Suits:

• 99-00 STI GC8 (4-Piston)
• 01-07 WRX GD (4-Piston)
• 03-07 Forester SG (4-Piston)**

**SG Forester has two possible caliper options either 4-Piston DB1170 or 2-Piston DB1491. Check pad shapes to confirm correct pad for your model.

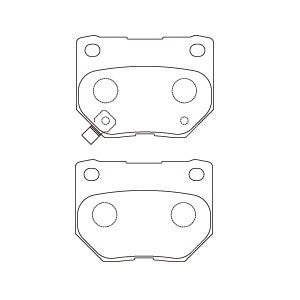

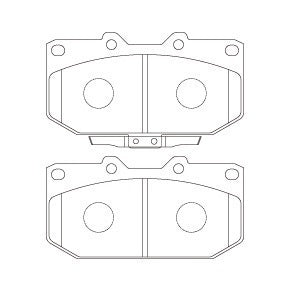

Please confirm pad shape by comparing existing pad against the blueprint in the last photo.

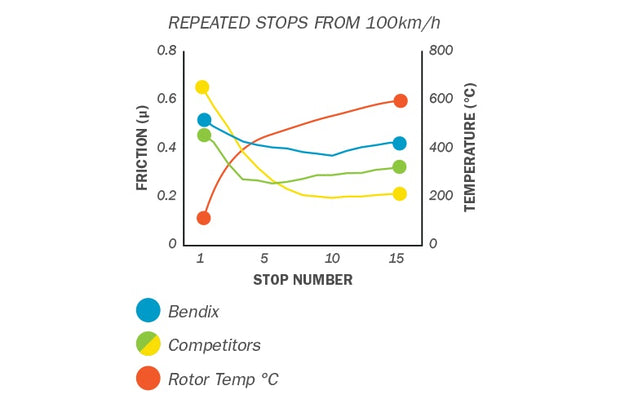

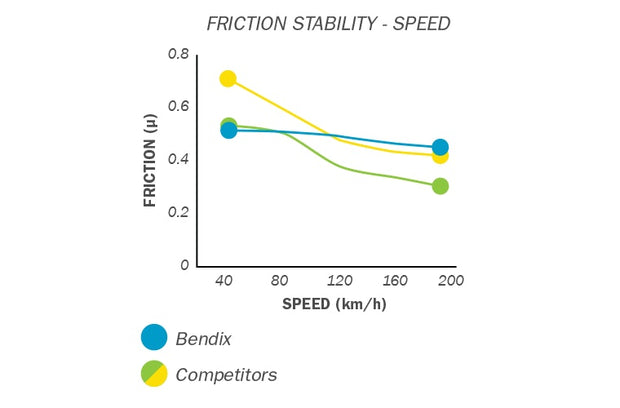

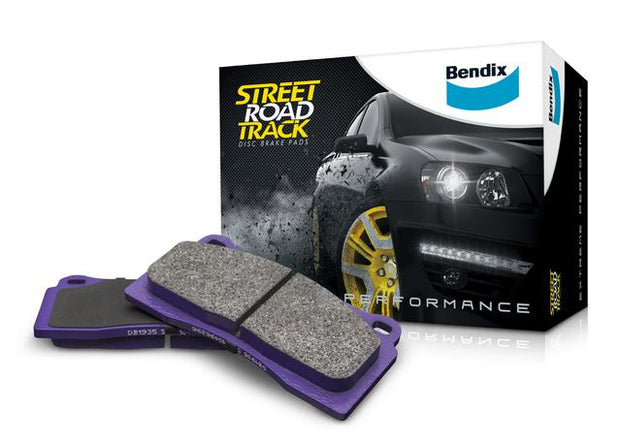

Street Road Track adjusts to your driving style, so you don’t have to adjust to the style of your brakes. They deliver consistently brilliant braking, with high tolerance, low fade, long wear and high friction in all sorts of conditions: The confidence to handle busy, unpredictable driving on the STREET where conditions can change in an instant. The reliability to negotiate mountains with your foot consistently on the brake or cruising the open ROAD with long intervals between braking. Or lap after lap of hot, hard, last second braking at the TRACK.

Suits:

• 99-2007 Subaru WRX GD (2-Piston)

Please confirm pad shape by comparing existing pad against the blueprint in the second photo.

Street Road Track adjusts to your driving style, so you don’t have to adjust to the style of your brakes. They deliver consistently brilliant braking, with high tolerance, low fade, long wear and high friction in all sorts of conditions: The confidence to handle busy, unpredictable driving on the STREET where conditions can change in an instant. The reliability to negotiate hills with your foot consistently on the brake or cruising the open ROAD with long intervals between braking or lap after lap of hot, hard, last second braking at the TRACK.

Suits:

• 1999-2000 Subaru STI GC8 (4-Piston)
• 2001-2007 Subaru WRX GD (4-Piston)
• 2003-2007 Subaru Forester SG (4-Piston)**

**SG Forester has two possible caliper options either 4-Piston DB1170 or 2-Piston DB1491. Check pad shapes to confirm correct pad for your model.

Please confirm pad shape by comparing existing pad against the blueprint in the second photo.
