Impreza WRX & STI 94-00

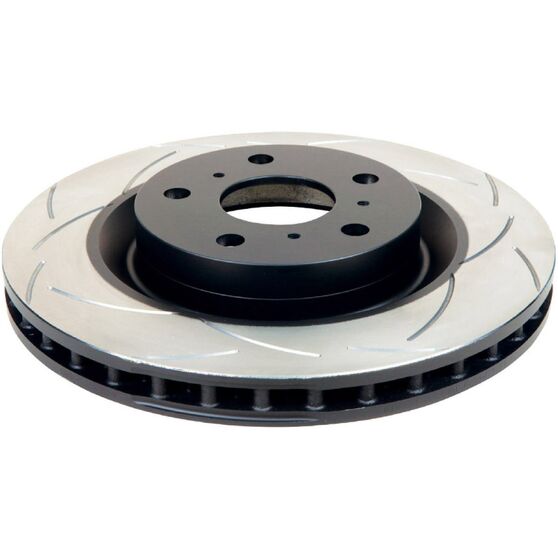

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

Specifications:

• Diameter 294 mm
• Height 57 mm
• Thickness 24 mm
• Min Thickness 22 mm
• Inner Diameter 58 mm
• Number of Holes 5
• Pitch Circle Ø 100 mm

 Suits:

• 99-14 Impreza WRX
• 03-13 Forester
• 04-09 Liberty
• 98-15 Outback
• 12-18 BRZ/86

Please measure factory discs and compare with the specifications above to confirm fitment.

  Price is per disc, 2 required per vehicle

DBA'S Street Series (SS) brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of street series disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

DBA recommends street series brake pads for everyday use application in passenger cars, SUVs and Light
Commercial Vehicles.

DBA recommends use with street series plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

DBA’s Street Performance (SP) and Extreme Performance (XP) brake pads have been designed for drivers seeking improved braking performance over traditional O.E. brake pads. DBA Street Performance is the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation.

 DBA’s Street Performance (SP) brake pads have been designed for drivers seeking improved braking performance over traditional O.E. brake pads. DBA Street Performance is the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation.

The SP range is recommended for street performance vehicles

• Semi-metallic friction material
• F-F class friction (0.35 average mu from low to high temperatures)
• Consistent friction at high temperatures
• Optimal braking consistency up to 438ºC (820ºF)

DBA’s Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550ºC (1022ºF)

Suits:

• 99-00 STI GC8 (4-Piston)
• 01-07 WRX GD (4-Piston)
• 03-07 Forester SG (4-Piston)**

**SG Forester has two possible caliper options either 4-Piston DB1170 or 2-Piston DB1491. Check pad shapes to confirm correct pad for your model.

Please confirm pad shape by comparing existing pad against the blueprint in the last photo.
